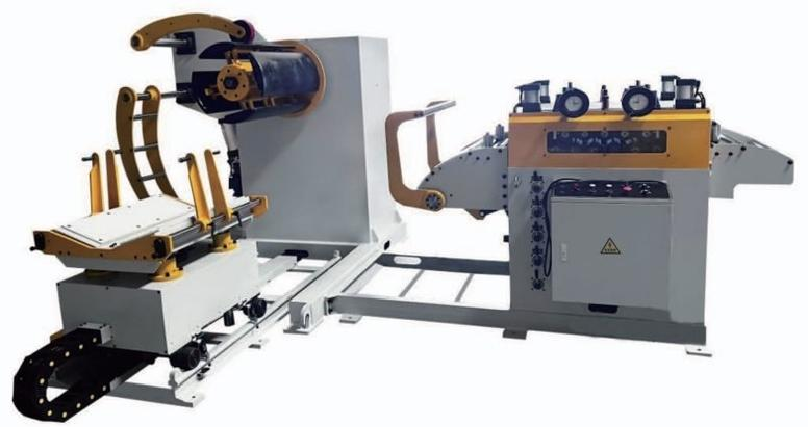

2-in-1 material correction and leveling machine for medium thick plates
equipment characteristics
The material frame and the leveling unit are combined together,which is suitable 0.3-4.5mm.
The levelling roller adopts the structure of 5up and 4 down,and the turbine fine adiustment can effectively eliminate the stress of the plate and fully achieve the levelling effect.The folding arm can make the material easily enter the levelling machine for correction.
The integrated electrc box allows users to control the rack and the levelling machine.
Roller adjustment adopts a special marking adjustment method to replace the traditionaldialindicatoradiustmentaromaswithoutaddtional correction,debugging more convenient and accurate.
The number of levelling rolls,the fulldrive of levelling rolls and the loading trolley can be customized according to the material and productionrequirements.
It can also be used for production lines that need to cut long size materials.
