Precision thin plate material leveling machinePrecision thin plate material leveling machine
equipment characteristics
There are two types of two-stage and single-stage models,the standard is two-stage,both are universal-joint synchronous independent.
The front section of the two-stage type is a large row distance rough correction, and the back section is a small row distance fine correction,so as to achieve multiple intermittent leveling of the material and meet the needs of high precision leveling.
The roller adjustment adopts the marking adjustment mode instead of the traditional dial indicator adjustment mode,without additional correction, debugging is more simple,accurate,and longer service life.List item
The inlet and outlet are provided with the inlet and outlet wheel assembly, convenient for the inlet and outlet.
The leveling roller is made of bearing steel by high-frequency quenching HR60℃ hard chromium plating and then grinding,high hardness,good wear resistance, long life.
Frequency conversion speed control,the material is not easy to shake deformation during operation,to ensure the needs of high precision leveling.
The material width of more than 300mm is attached to the leveling auxiliary wheel (reinforcing device)to ensure that it will not bend and deform during the production process,thereby improving the flatness quality of the product.
Accessories: Inverter x 1 induction bracket x 1
Equipment specifications
Equipment specifications
Equipment pictures
Open type precision thin plate leveling machineOpen type precision thin plate leveling machine
equipment characteristics
The upper leveling roller group can be opened at 45°oblique upward,which can quickly and thoroughly clean the working roller,facilitate mechanical inspection, and ensure the leveling accuracy.
The leveling roller adopts the original three-stage structure,compared with the traditional single and double sections can only bend downward into the material, the three-stage material can bend upward and downward into the material.
The roller adjustment adopts the marking adjustment mode nstead of the traditionaldial indicatoradjustment mode,without additional correction, debugging is more simple,accurate,and longer service life.
The leveling roller adopts bearing steel,after heat treatment HRC60°,the surface is plated with hard chromium and then ground,high hardness,wear resistance, long life.
The use of frequency converter speed regulation,can reduce the material in the process of shaking deformation.
More than 300mm models are equipped with reinforcing devices to prevent the flattening roller due to excessive pressure and bending deformation,strengthen the flattening strength and life of the whole roller.
Accessories: Frequency converterx1 Induction bracket×1 1set of automatic lubricating oil feeding device
Equipment specifications
Equipment specifications
Equipment pictures
Open type precision leveling machineOpen type precision leveling machine
equipment characteristics
The upper row of leveling drum can be tilted up 45°to open,convenient for cleaning the drum.The upper and lower rollers can stillbe operated manually after opening,which is convenient for the inspection of the rollers.
The upper row of leveling assembly of an auxiliary roller,can adjust the bending direction of the material according to demand.
The leveling cylinder adjustment adopts the marking adjustment modeinstead of the traditional dial indicator adjustment mode,without additional correction, debugging is more simple,accurate,and longer service life.
LThe bearings on both sides of the leveling cylinder are oil-free and do not need lubrication,which is wear-resistant and does not have the trouble of oil or dirt adhesion.ist item
Frequency control,the material is not easy to shake deformation.
The inlet and outlet are provided with the inlet and outlet wheel assembly, convenient for the inlet and outlet.
The material width of more than 300mm models are equipped with leveling auxiliary wheels to prevent the leveling roller due to excessive pressure and deformation,strengthen the leveling effect and life of the leveling roller.
Accessories: Inverter x 1 induction bracket x 1
Equipment specifications
Equipment specifications
Equipment pictures

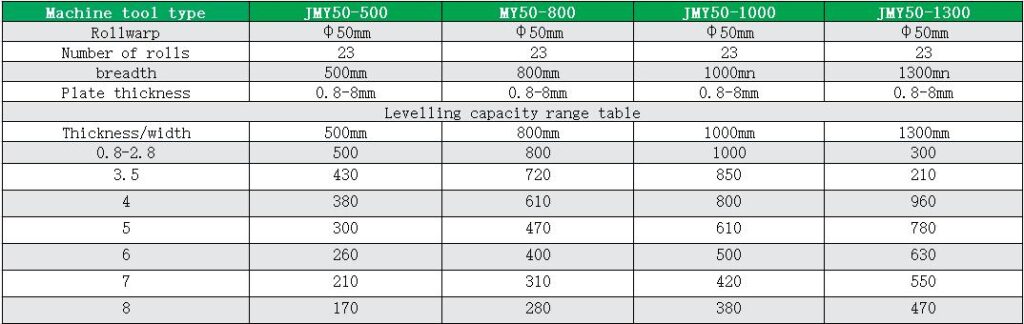

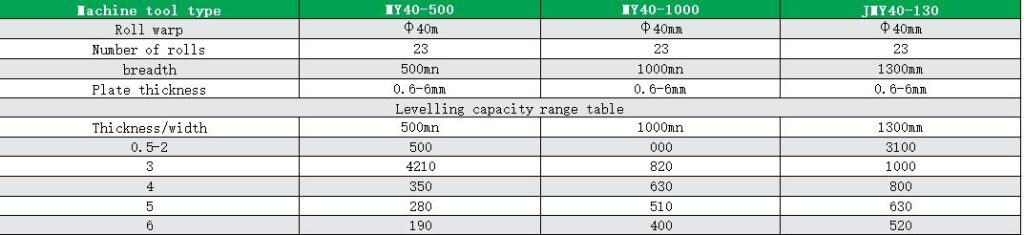

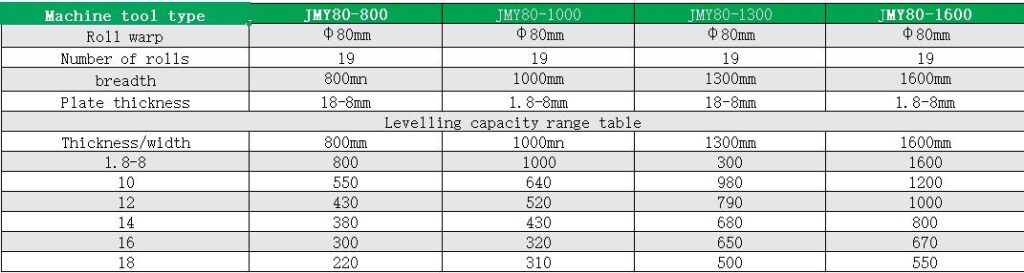

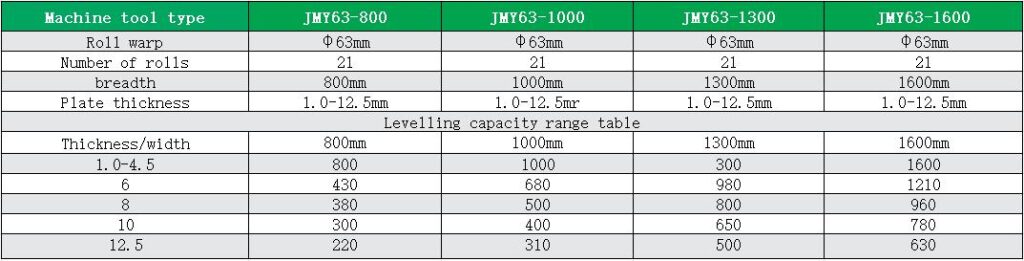

Precision hydraulic thick plate leveling machine
equipment characteristics

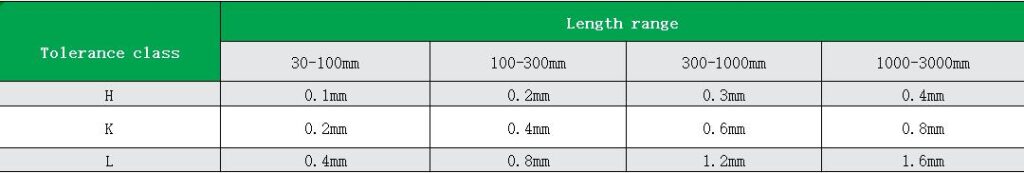

This machine is specialized for products that require high flatness after stamping or laser cutting and deformation.

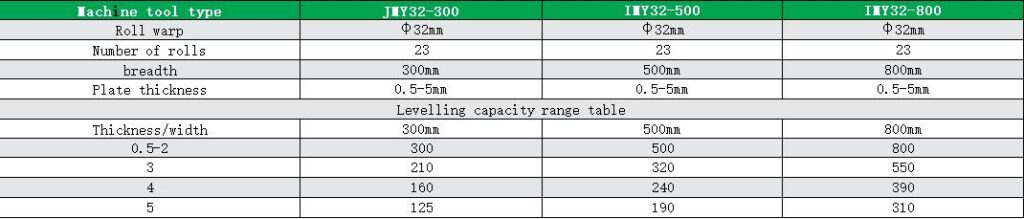

There are a total of 23 leveling rollers in the machine, arranged in a top 11 and bottom 12 configuration, with a fully universal joint transmission method to ensure transmission stability.
Both the upper and lower rollers are equipped with reinforcement devices to ensure the strength of the rollers does not deform. The upper drum adopts hydraulic adjustment and locking function to ensure its stability. The drum clearance adjustment adopts electric adjustment, which is convenient and fast.

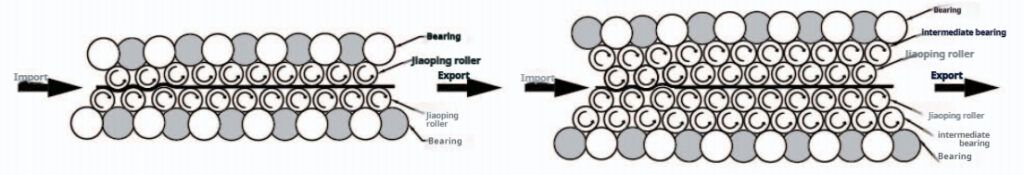

Detailed Equipment Diagram
Six fold (high-precision leveling) without roller printing and indentation
Quadruple (ordinary leveling) meets general leveling needs
