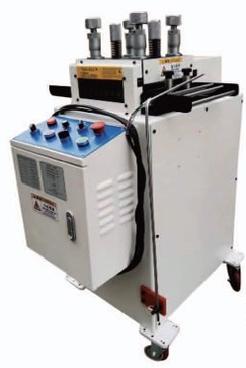

Precision thin plate material leveling machinePrecision thin plate material leveling machine
equipment characteristics
There are two types of two-stage and single-stage models,the standard is two-stage,both are universal-joint synchronous independent.
The front section of the two-stage type is a large row distance rough correction, and the back section is a small row distance fine correction,so as to achieve multiple intermittent leveling of the material and meet the needs of high precision leveling.
The roller adjustment adopts the marking adjustment mode instead of the traditional dial indicator adjustment mode,without additional correction, debugging is more simple,accurate,and longer service life.List item
The inlet and outlet are provided with the inlet and outlet wheel assembly, convenient for the inlet and outlet.
The leveling roller is made of bearing steel by high-frequency quenching HR60℃ hard chromium plating and then grinding,high hardness,good wear resistance, long life.
Frequency conversion speed control,the material is not easy to shake deformation during operation,to ensure the needs of high precision leveling.
The material width of more than 300mm is attached to the leveling auxiliary wheel (reinforcing device)to ensure that it will not bend and deform during the production process,thereby improving the flatness quality of the product.
