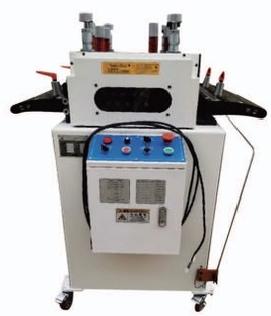

Open type precision leveling machineOpen type precision leveling machine
equipment characteristics
The upper row of leveling drum can be tilted up 45°to open,convenient for cleaning the drum.The upper and lower rollers can stillbe operated manually after opening,which is convenient for the inspection of the rollers.
The upper row of leveling assembly of an auxiliary roller,can adjust the bending direction of the material according to demand.
The leveling cylinder adjustment adopts the marking adjustment modeinstead of the traditional dial indicator adjustment mode,without additional correction, debugging is more simple,accurate,and longer service life.
LThe bearings on both sides of the leveling cylinder are oil-free and do not need lubrication,which is wear-resistant and does not have the trouble of oil or dirt adhesion.ist item
Frequency control,the material is not easy to shake deformation.
The inlet and outlet are provided with the inlet and outlet wheel assembly, convenient for the inlet and outlet.
The material width of more than 300mm models are equipped with leveling auxiliary wheels to prevent the leveling roller due to excessive pressure and deformation,strengthen the leveling effect and life of the leveling roller.
