Our three-axis series equipment is worthy of your trust

Equipment pictures

VI Generation -3KG Intelligent Swing Arm Stamping Robot

equipment characteristics

Load 3KG,using self-developed robot control algorithm to achieve linkage control of all axes,according to the feeding characteristics of the stamping industry, automatically generate the optimal motion trajectory,stable and efficient action up to 17minutes;

Four-axis/five-axis optional,high flexibility,can be full range,multi-angle to achieve a variety of stamping action:flip,scrap(before discharge),side hanging, inclined or stacked,and suitable for continuous die,single multi-die and other die processes

All axes adopt high-performance absolute servo system,line optimization, excellent overall performance,and have power failure position memory function to avoid the trouble of origin reset;

Adopting open programmable technology, supporting motion trajectory editing, simple operation, flexible control, capable of storing various product information, strong interchangeability, and can be used for a long time with one setting;

Suitable for all types of stamping equipment on the market gear punching machine pneumatic punching machine oil press and no matter the size of the tonnage,machine height,can be freely connected to achieve the free combination of equipment connection;

Adopt domestic and foreign famous brands and high-precision core accessories, stable and reliable quality,positioning error control within±0.2mm,failure rate is less than 1%,service life of 8~10 years (depending on the production environment and maintenance)

The product has been highly standardized, requiring only customized grippers (suction cup, pneumatic, magnetic, etc.), easy installation, and can be mass-produced within three days of delivery.

Equipment specifications

Equipment pictures

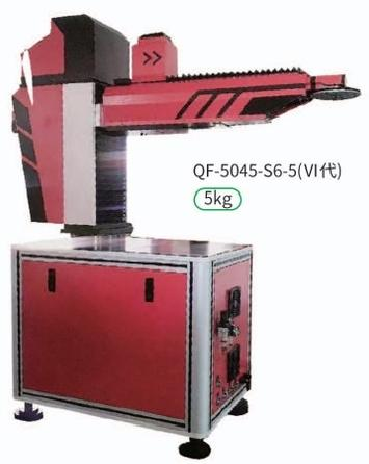

VI Generation -5KG Intelligent Swing Arm Stamping Robot

equipment characteristics

With a load of 5KG, the independently developed robot control algorithm is used to achieve linkage control of each axis. Based on the feeding characteristics of the stamping industry, the optimal motion trajectory is automatically generated, with smooth and efficient actions up to 15 times per minute;

Four-axis/five-axis optional,high flexibility,can be a full range,multi-angle to achieve a variety of stamping action:flipping,scrap(before discharge),side hanging,inclined or stacked,and suitable for continuous die,single multi-die and other die processes

All the axes use high-performance absolute servo system,line optimization, overall performance is excellent,while with power off position memory function, to avoid the origin reset trouble;

Adopt open programmable technology,support motion trajectory editing, simple,flexible control,can store a variety of product information,strong interchangeability,one setting can be used for a long time;

Suitable for all types of stamping equipment on the market gear punching machine pneumatic punching machine oil press and do not matter the size of the tonnage,machine height,can be freely connected to achieve the free combination ofequipment connection;

Using domestic and foreign famous brands and high-precision core accessories, stable and reliable quaity,positioning error control within±0.2mm,failure rate is less than 1%.Service life of 8~10 years(depending on the production environment and maintenance)

Products have been highly standardized,only need to customize the gripper (suction,pneumatic,magnetic,etc.),easy installation,deivery three days can be mass produced.

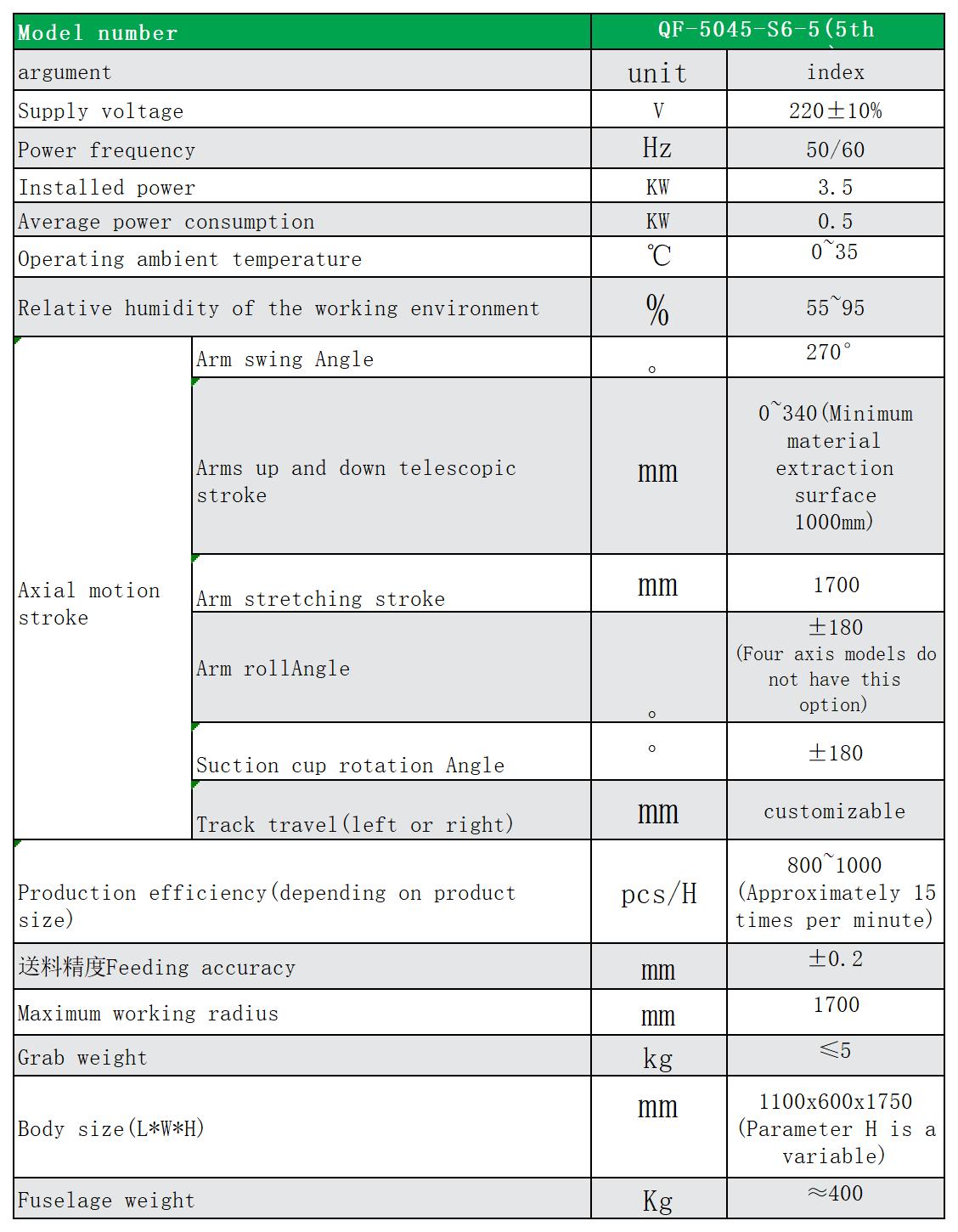

Equipment specifications

Equipment pictures

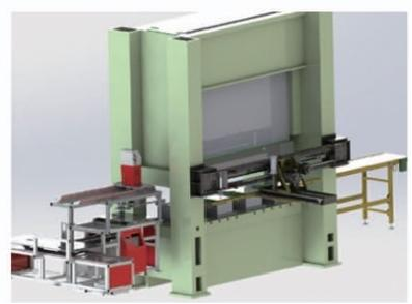

Suitable for punching machines under 630 tons, the lifting height and clamping range can be adjusted by the arm, and it is used for forming irregular parts, lifting large pieces, and the automotive market.

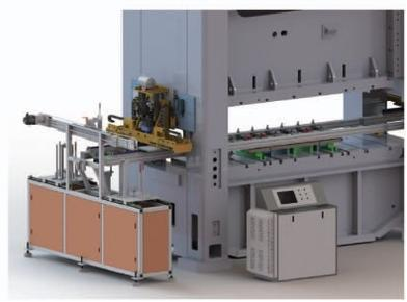

Used for 63-400 ton single and double point punching machines, specifically designed for the handling of stamping by multiple engineering molds, applied in the stamping industry of small hardware, auto parts, and home appliance accessories

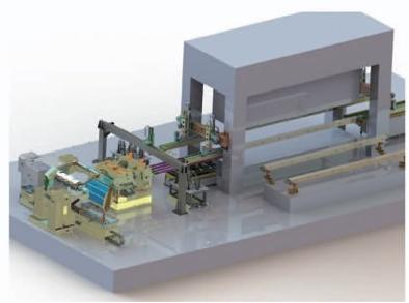

Suitable for punching machines weighing over 630 tons, specifically designed for large countertop punching machines, with efficient and stable movements, suitable for shell stretching, automotive, and sheet metal markets.

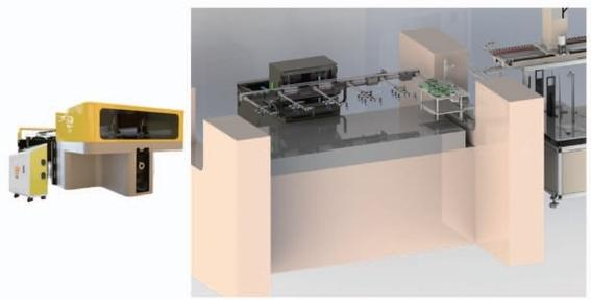

Suitable for 200-1600 ton punching machines specifically designed for small side openings, applied in the automotive, home appliance, and sheet metal markets.

equipment characteristics

Suitable for multi station handling,feeding,stamping automation production lines.

Servo controlis adopted,with high precision and strong bearing capacity.

Adopting PLC control to improve product compatibility and flexibility.

Each robotic arm is equipped with a sensor detection device that automatically alarms for material shortage.

Equipped with a human-machine interface, easy to operate and monitor production status.

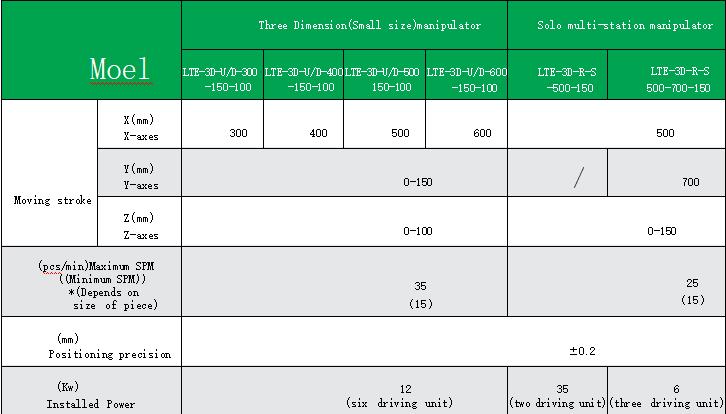

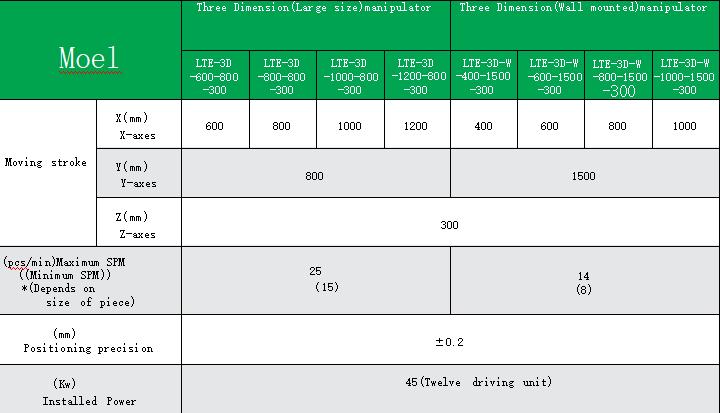

Equipment specifications
