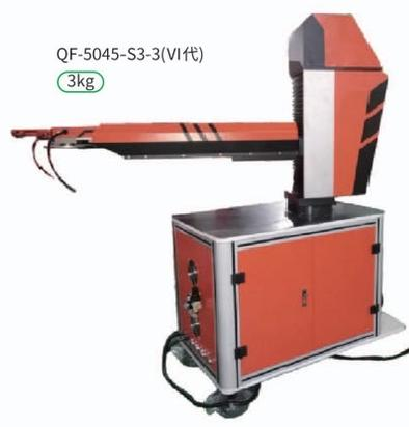

Equipment pictures

VI Generation -3KG Intelligent Swing Arm Stamping Robot

equipment characteristics

Load 3KG,using self-developed robot control algorithm to achieve linkage control of all axes,according to the feeding characteristics of the stamping  industry, automatically generate the optimal motion trajectory,stable and efficient action  up to  17minutes;
Four-axis/five-axis  optional,high  flexibility,can   be  full   range,multi-angle  to  achieve a variety of stamping action:flip,scrap(before discharge),side hanging, inclined or stacked,and suitable for continuous die,single multi-die and other die  processes
All  axes  adopt   high-performance  absolute  servo  system,line  optimization, excellent overall performance,and have power failure position memory function to avoid the trouble of origin reset;
Adopting open programmable technology, supporting motion trajectory editing, simple operation, flexible control, capable of storing various product information, strong interchangeability, and can be used for a long time with one setting;
Suitable  for  all  types  of  stamping  equipment  on  the  market  gear  punching machine pneumatic punching machine oil press and no matter the size of the  tonnage,machine   height,can    be   freely    connected   to    achieve   the   free  combination of equipment connection;
Adopt domestic and foreign famous brands and high-precision core accessories, stable  and  reliable  quality,positioning  error  control  within±0.2mm,failure  rate is  less  than   1%,service  life  of  8~10  years   (depending  on  the   production environment and maintenance)
The product has been highly standardized, requiring only customized grippers (suction cup, pneumatic, magnetic, etc.), easy installation, and can be mass-produced within three days of delivery.

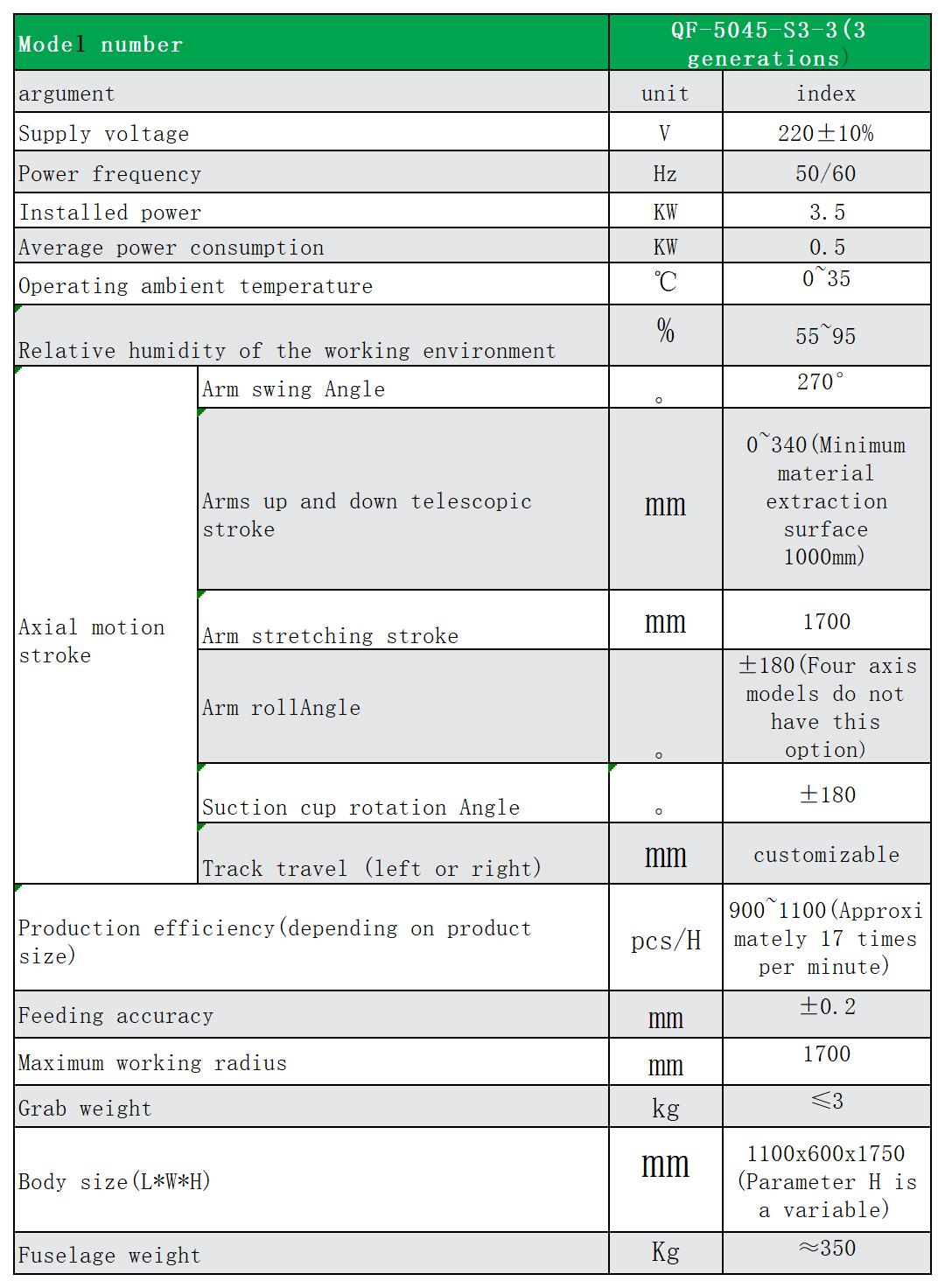

Equipment specifications

Equipment specifications
